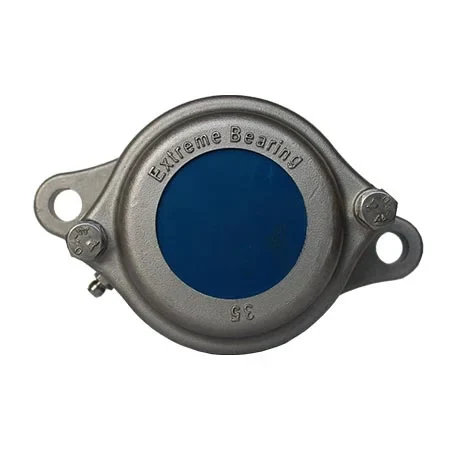

2-hole flange bearing for heavy-duty applications in less space
The oval/diamond-shaped flange housing is lighter in weight, making it ideal for slim frames, tube structures, and small side plates, while still being suitable for heavy-duty applications. It is well suited when you need a compact and simpler solution for lighter applications.
View the EXW unit in 3D
Why choose a 2-hole mounted bearing unit?
1. Saves space
The 2-bolt design is narrower and more compact.
Best when:
- Mounting area is limited
- Machinery has tight side clearances
- Compact equipment design is important
2. Sufficient support for compact machines
Suitable for carrying loads in compact machines where space saving is essential. For many applications, a 2-bolt flange provides enough support.
Typical uses:
- Conveyor systems in small production lines
- Packaging machines with limited installation space
- Pick-and-place machinery
3. Better for narrow machine frames
The oval/diamond flange shape fits well on:
- Slim frames
- Tube structures
- Small side plates
- Narrow built-in spaces
Useful when:
- Loads are severe in less space
- Precision rigidity is unnecessary
- When less weight counts

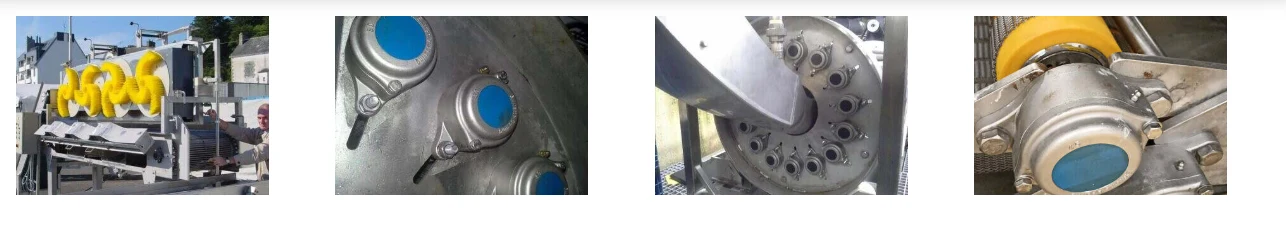

Extreme Bearing EXW units in food-industry and processing machinery
Load directions
2-hole flange mounted Extreme Bearing units are designed for radial loads or loads acting vertically toward the base support surface. If radial loads act on the shaft in other directions, it is necessary to verify that the applied load remains within the allowable limits of the bolt connection to the machine frame.

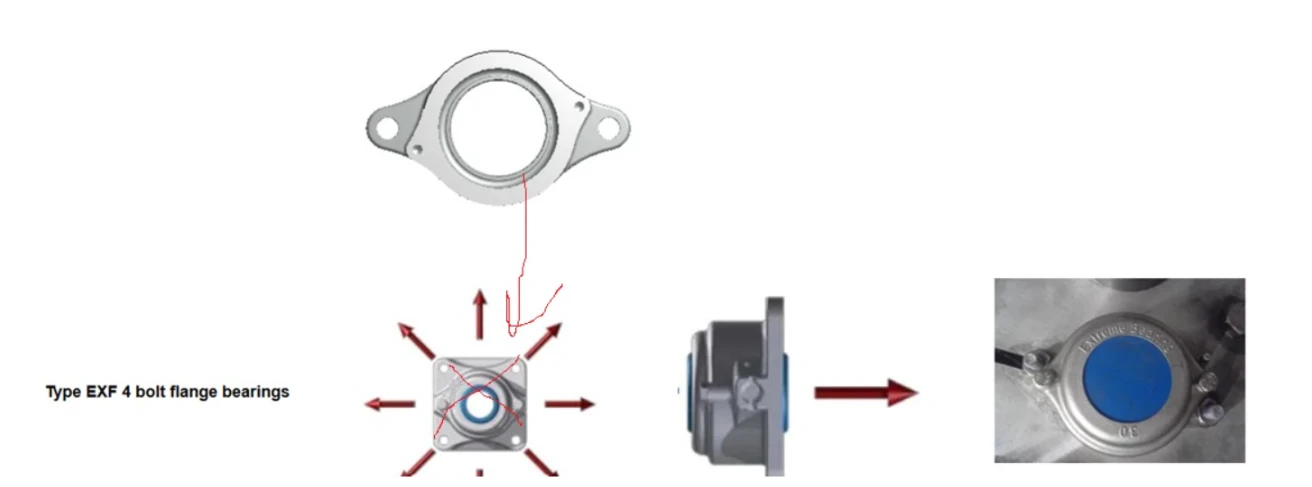

Load direction for 2-hole flange mounted Extreme Bearing units.
