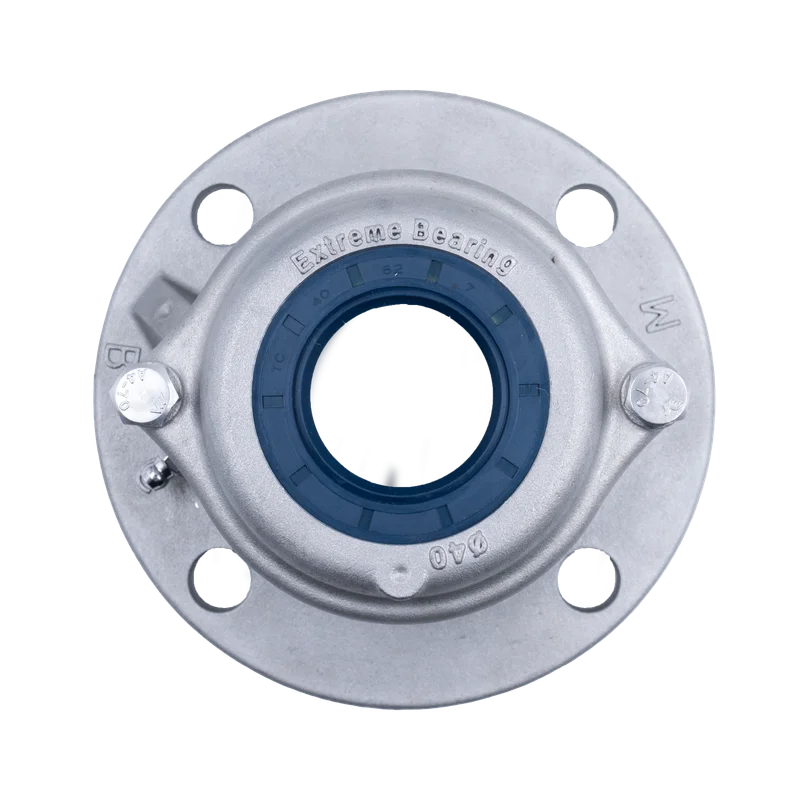

EXP is the round flanged housing variant. It mates naturally with circular openings on tanks, wash enclosures, and OEM adapter plates where a square EXF pattern would require extra fabrication.
Process vessels, mixer penetrations, and pump pedestals frequently use round flanges. Combine EXP with the insert and seal codes that match your speed, load, and cleaning regime.
View the EXP unit in 3D
Dimensions per size

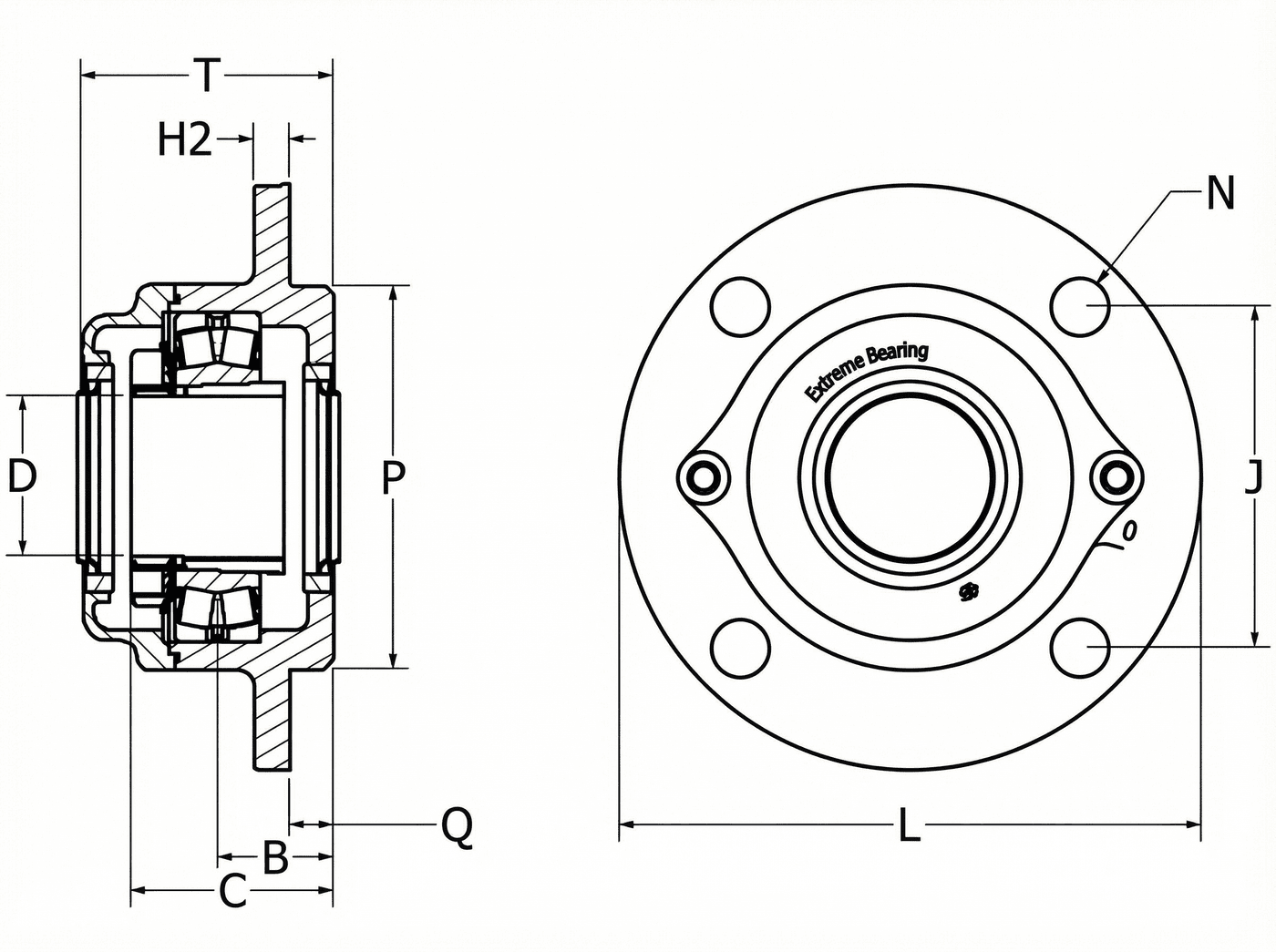

EXP – dimension sketch (J and H1)
J is the bolt hole pitch circle diameter (mm) — required for drilling the circular mounting pattern on tank walls or adapter plates.
